Product Details

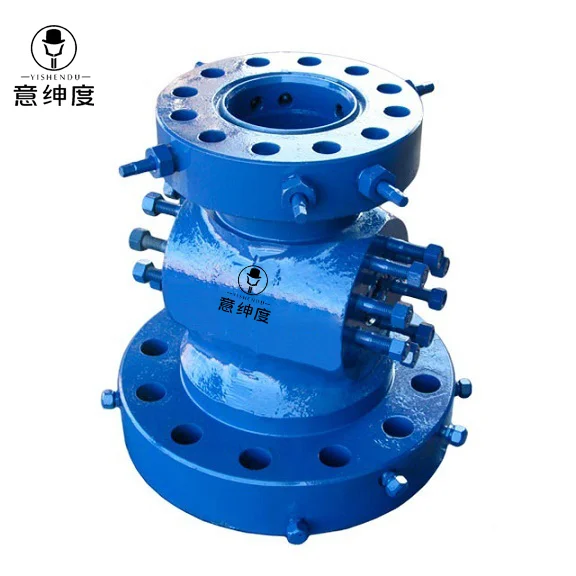

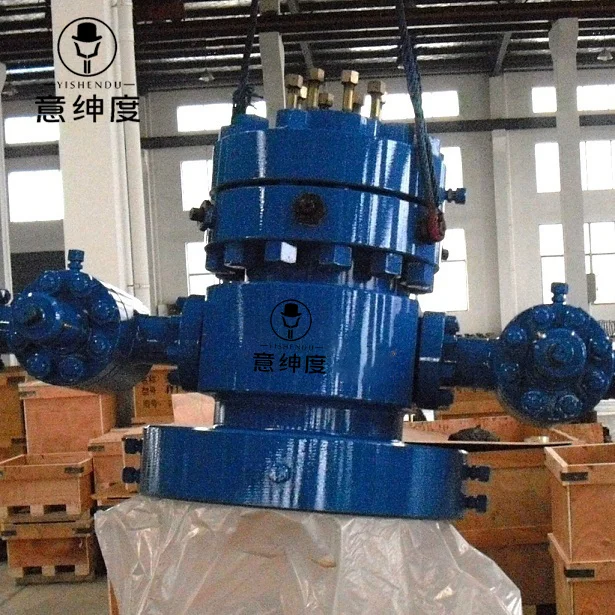

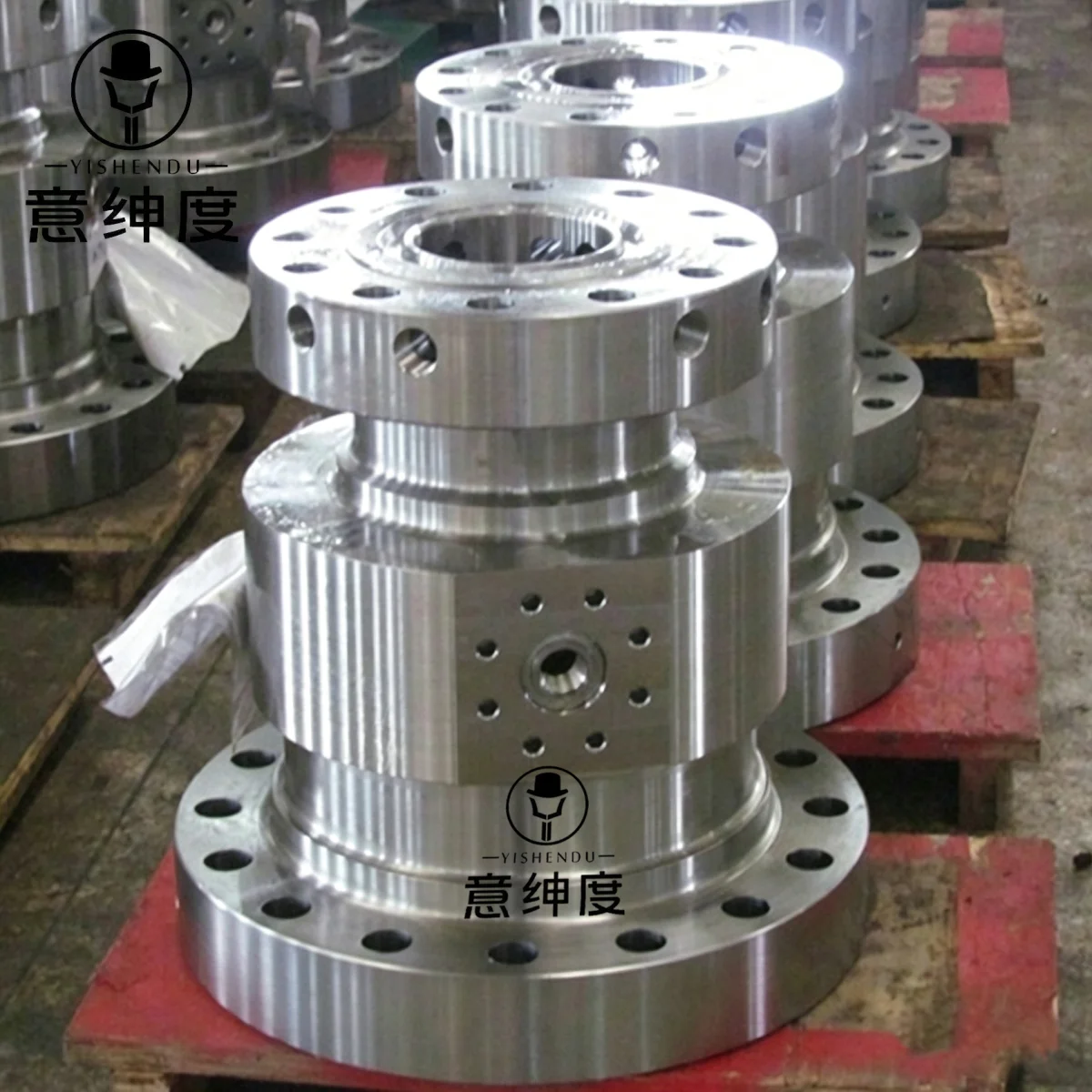

Tubing Head, also referred to as Tubing Spool, is a spool with two flanges (top flange & bottom flange) and two side outlets. The top flange is equipped with lock screws to fix tubing hanger. Tubing head is installed on top of casing head spool and is used to hang the tubing string and seal the annular space between tubing and production casing.

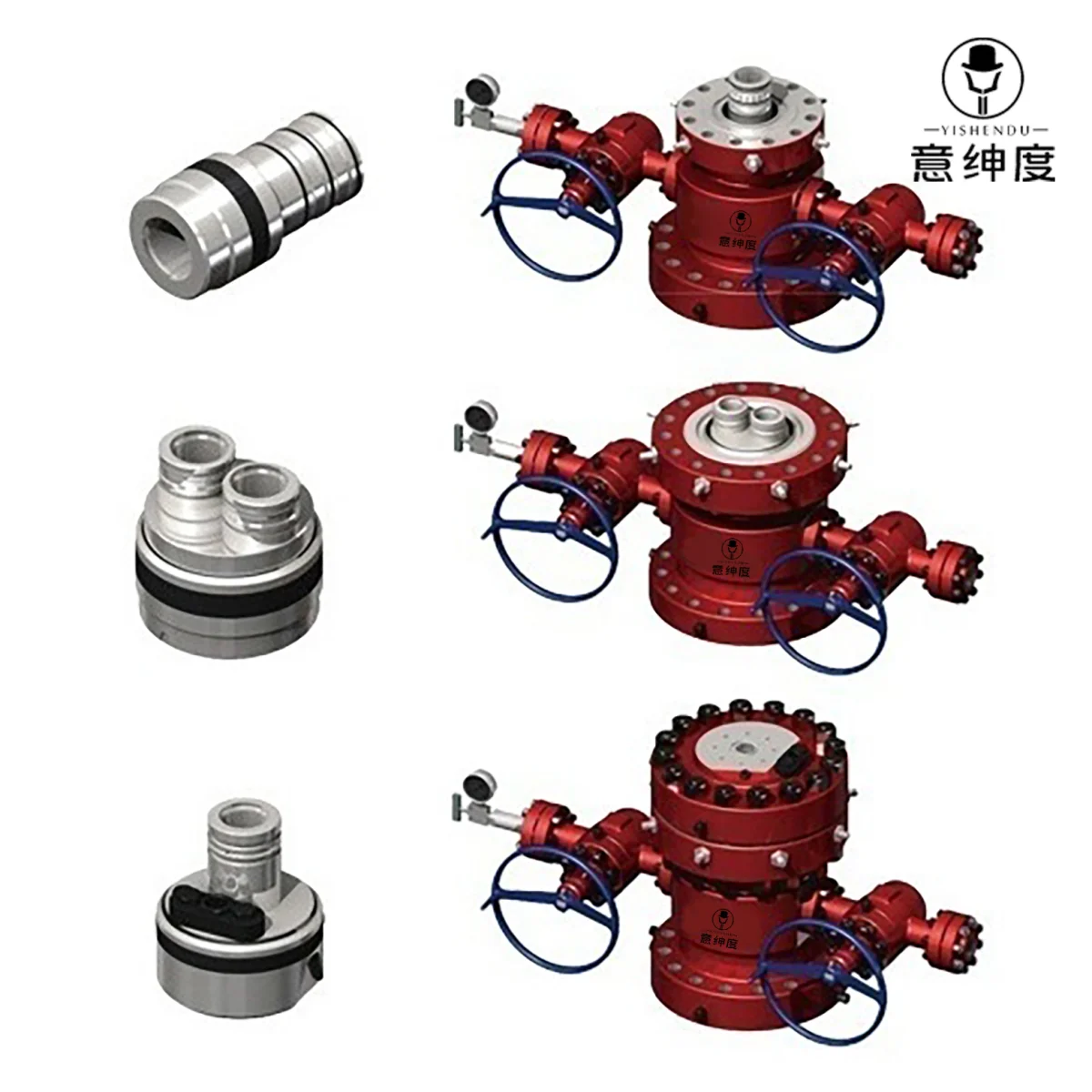

Tubing head assmbly is the most important equipment to connect casing and BOP, oil and gas production wellhead. It mainly consists of tubing spool, gate valve, tubing hanger, ring gasket, andpressure gauge. The top spool on a wellhead assy contains the highest pressure in the wellhead, and contains a load shoulder to hang the tubing hanger and tubing string. When the well is completed, the tree is installed on top of the head with a tubing head adapter. Providing a means to support and test the BOPs while completing the well, the tubing head is a necessary component when drilling and completing a well. The standard tubing head product line combines a straight-bore profile with a varied number of aligning pins, depending on the chosen model.
Tubing Head Spools supplied by Qihang are manufactured as per API 6A standards and can be used for both single completions and model of dual completions.
Detailed Specifications:
Product Name: Tubing Head, Tubing Head Spool
Nominal Bore: 7-1/16", 9", 11", 13-5/8"
Standards Carried: API Spec 6A, NACE MR0175
Pressure Rating: 2000 PSI to 15000 PSI
Outlets: API 6B or API 6BX Flanged Top & Bottom
Material Class: AA, BB, CC DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4

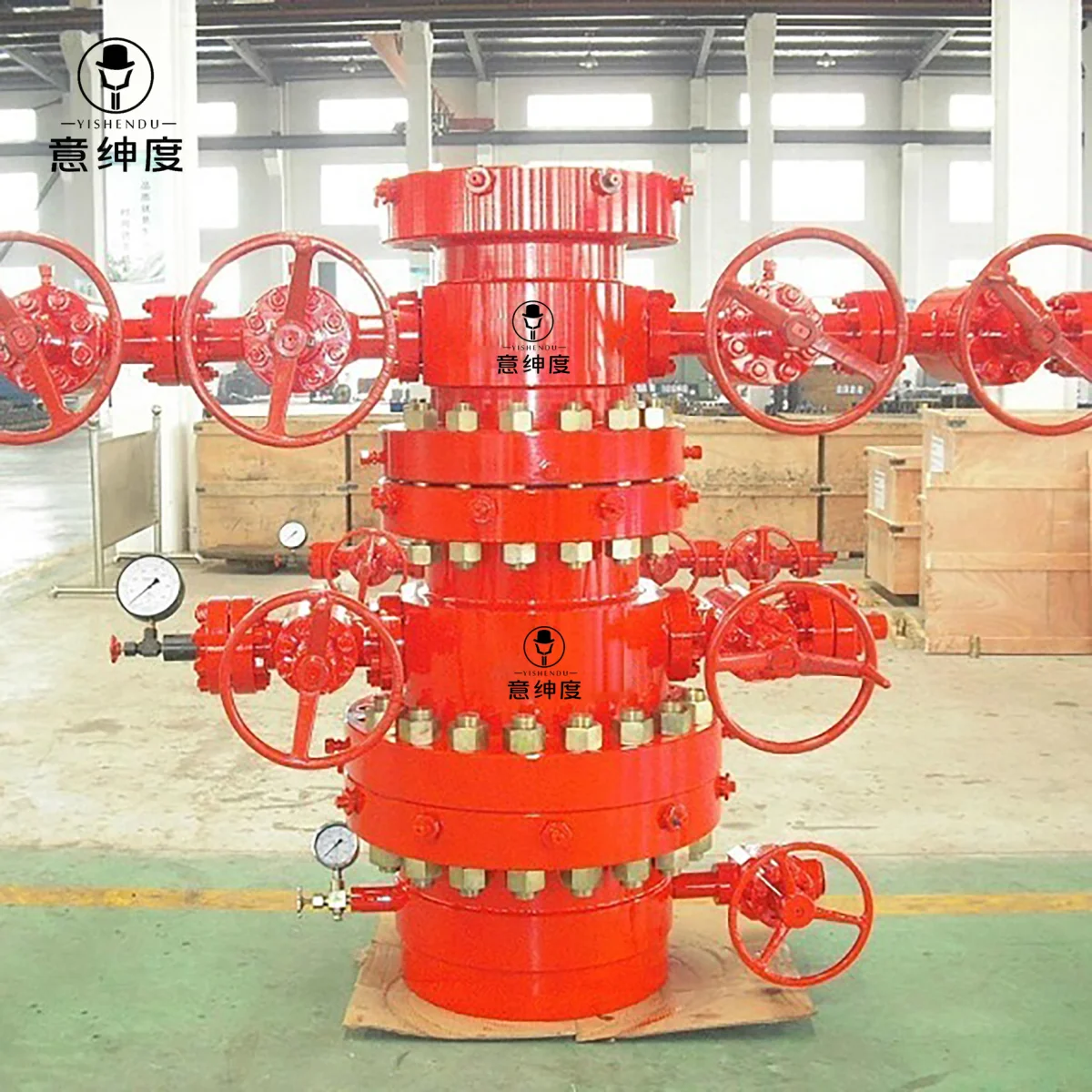

Application: Wellhead Assembly Christmas Tree
Traceability: Qihang's Tubing Head Assemblies (Tubing Spool Assemblies) are supplied with full traceability documentation for each component.
Paint Color: Red, Blue or Customized
Origin: China
