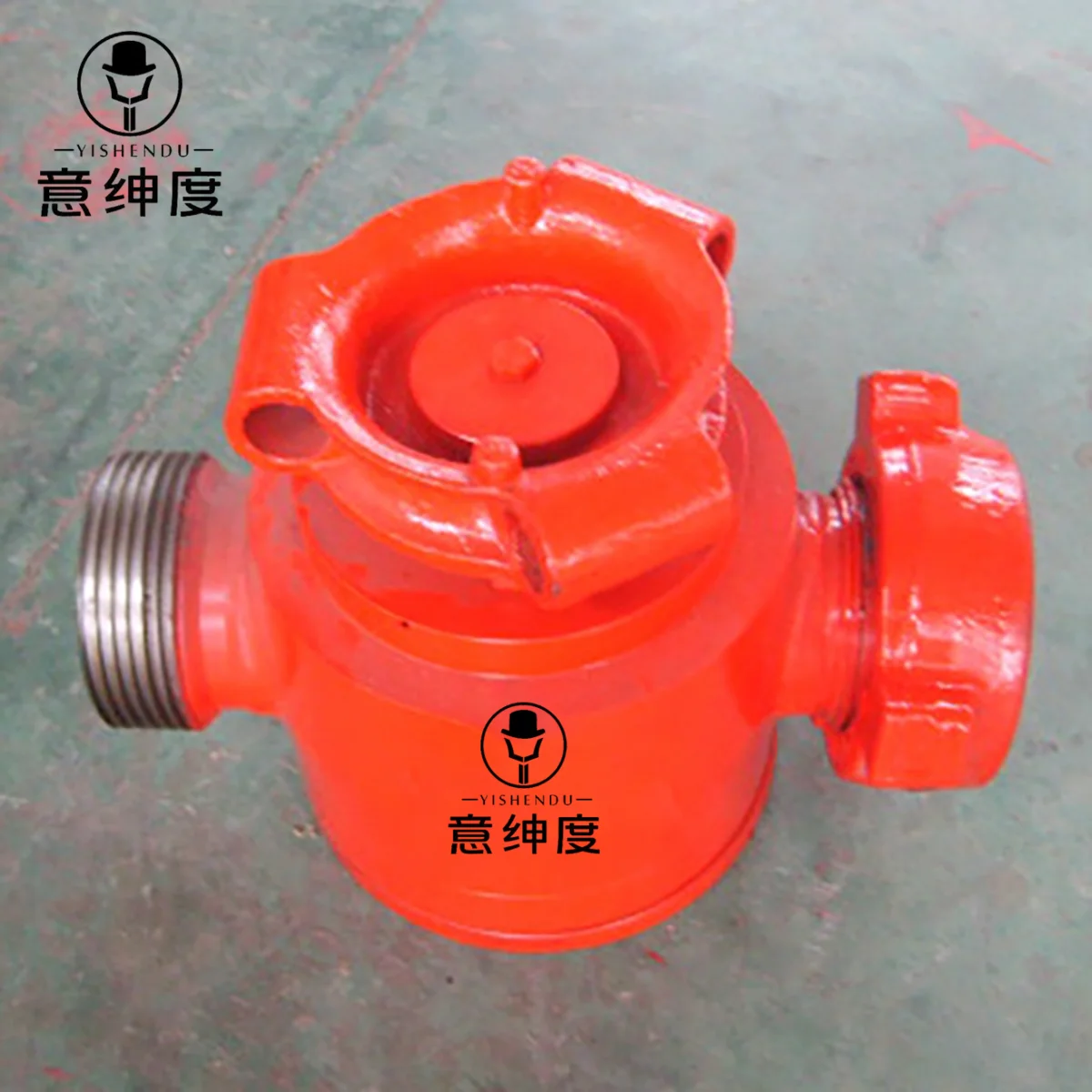

2" x Fig 1502 API 6A Manual Plug Valve for Oilfield Manifold

API 6A Plug Valve is an important part which is used on high pressure manifold for the well cementing and fracturing operations.It can also be used for high pressure fluid control system. Its main parts include valve body, bonnet, plug, plug cap, segments and hand wheel. Plug valve features compact structure, easy maintenance, low operating torque, rapid opening and easy operation, making it ideal for the cementing and fracturing manifolds. Qihang's Plug Valve is lubricated, tapered seal, quarter-turn plug valve for quick full open or close operation. Our plug valve cavity is tapered to ensure uniform seating of the sealing inserts, providing a reliable seal at the full range of pressures. Our plug valves are fabricated according to API Spec 6A and API Q1 standards and are available in working pressures up to 15,000 PSI. Detailed Specifications: Bore Size: 2" - 4" Pressure Rating: 5000 PSI to 15000 PSI End Connection: Hammer Union, flange or thread Standards: API Spec 6A, API Q1, NACE MR0175 Material Class: DD, EE Temp Class: P-U (-29°C to 121°C) Paint Color: Red or as per customer's requirement PR Rating: PR1, PR2 PSL Rating: PSL1, PSL2, PSL3, PSL4 Application: Oilfield Manifolds
