Product Details

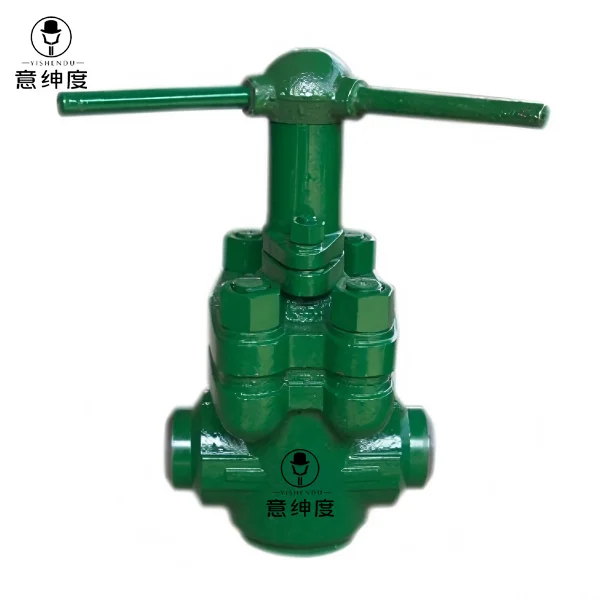

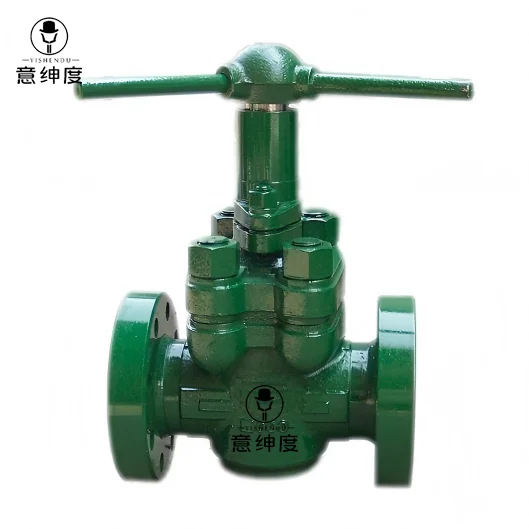

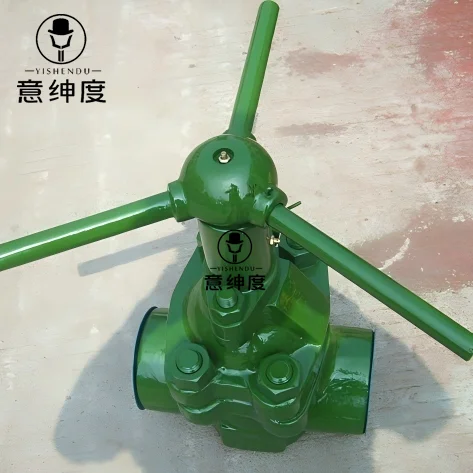

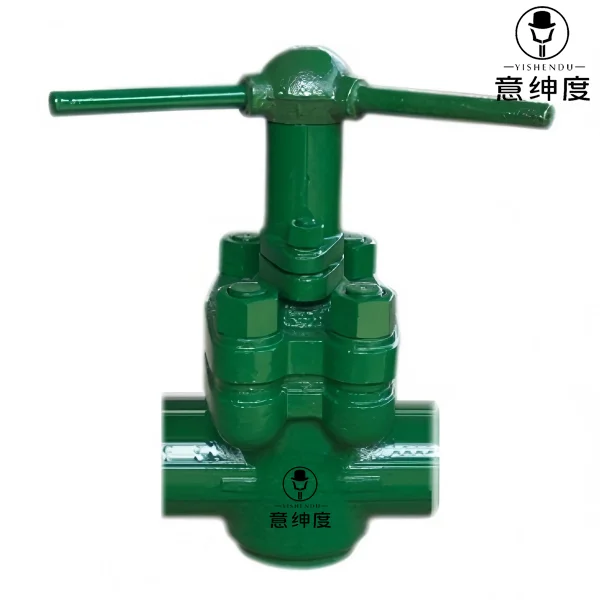

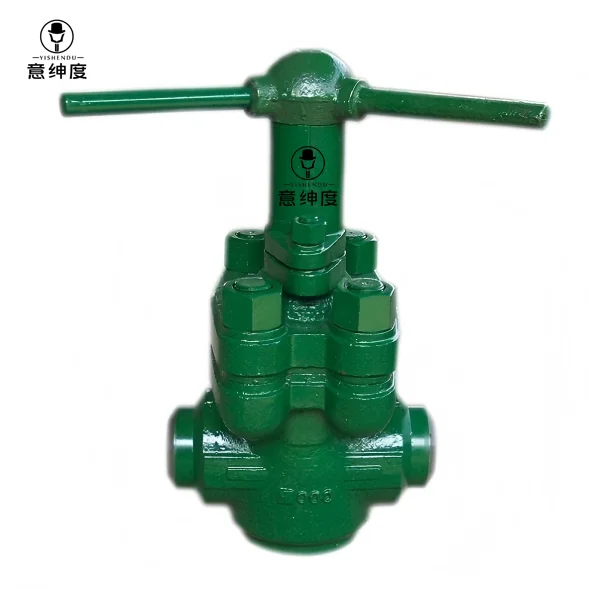

In the Oil & Gas industry, the API6A Demco DM Mud Gate Valve or Mud Valve is engineered for the rigorous requirements of abrasive and erosive service conditions in oilfield applications, such as mud, cement, fracturing and water service. The DM Gate Valves feature rising stem, solid gate with resilient seals. They are easy to operate and simple to maintain.
The Demco series DM mud gate valves mainly come in four types of end connections, the Butt-Welded End type, the Threaded End type, the Flanged End type, and the Hammer Union End type(Such as Fig 1502, Fig 1003). Popular valve sizes include 2", 3", 4", 5" x 4" and 6" x 4". End connections vary by size and pressure rating based on market requirements. Some sizes in the ANSI series are offered with grooved end connections.
The API-6A DM mud gate valves can be hard seal or soft seal. Available in pressure ratings at 2000PSI, 3000PSI, 5000PSI, and 7500 PSI. All of our DM Mud Gate Valves are strictly designed, manufactured, and tested in accordance with API-6A standards. They are suitable for both standard and H2S service. DM mud gate valve repair kits are also available.
Details:
Product Name: DM Mud Gate Valve
Bore Size: 3"
Standards: API 6A
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 7500PSI
Types of End Connections: Flanged (RTJ), Threaded, Butt-Welded, Hammer Union
Material: Stainless Steel, Carbon Steel
Trim Material: NBR, HNBR
Working Medium: Oil, Natural Gas, Mud and Gas containing H2S, CO2
Material Class: AA, BB, CC, DD, EE, FF
Temperature Class: LU
Performance Requirement: PR1, PR2
PSL Rating: PSL1, PSL2, PSL3, PSL4
Traceability: Qihang's API6A DM Mud Gate Valves are supplied with full traceability documentation for each component.
Service: Standard, H2S etc
Application: Drilling standpipe manifolds, Pump Manifold Block Valves, Production Manifolds, Production Flow Lines, High Pressure Mud Pipelines, Wellheads and Petroleum/Gas Pipelines etc
Origin: China
Features:
100% interchangeable with Demco DM series mud gate valves.
Designed specifically for abrasive and erosive condition
Gates available: Nickel-plated carbon steel, Monel, Aluminum Bronze or Stainless Steel
Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
Optimal for mud drilling operation systems
On-Time Delivery & Competitively Priced
