Product Details
Frac Valves are Ball Screw Operated (BSO) valves, which are often fitted onto the top of the Frac Tree/Frac Stack or Wellhead for the frac operation to isolate the fluid from the well. The Frac Valves are capable of producing multi staged fracs in the toughest environments.
Fracturing gate valve is applied in fracturing project and it is an important part for fracturing equipment. The fracturing gate valve is designed in accordance with performance requirements of API 6A specs.

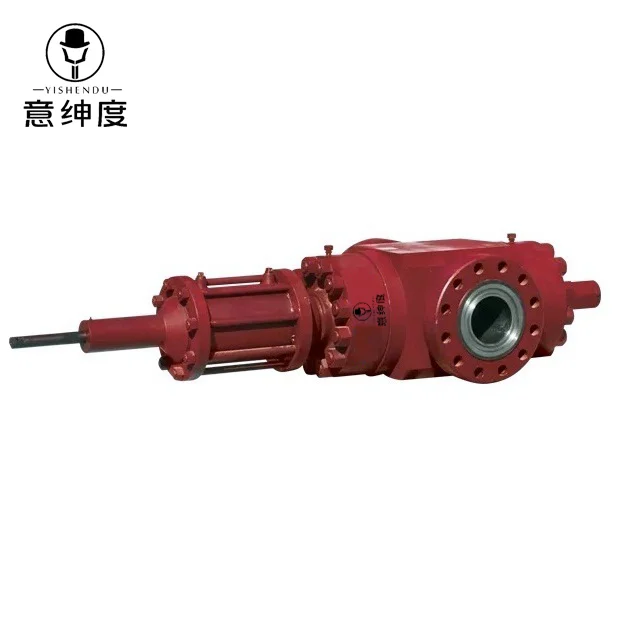

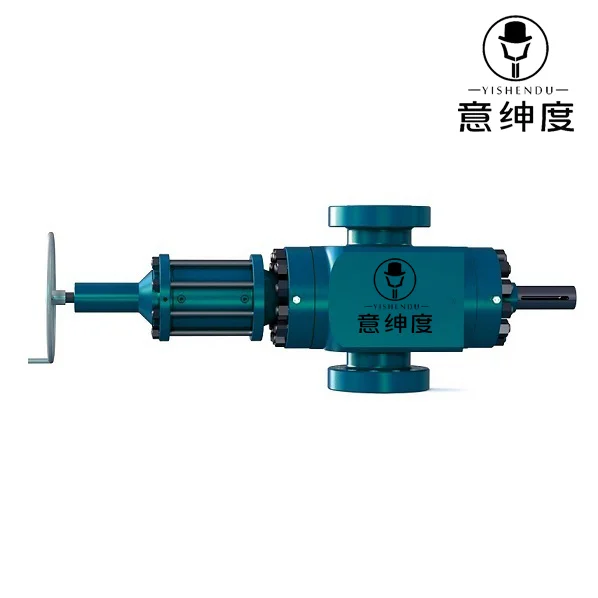

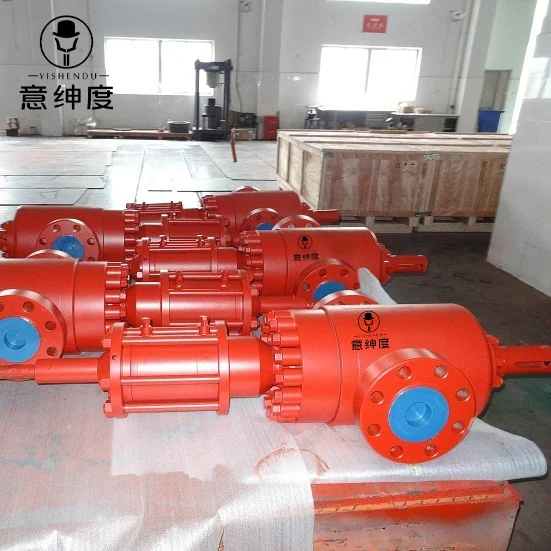

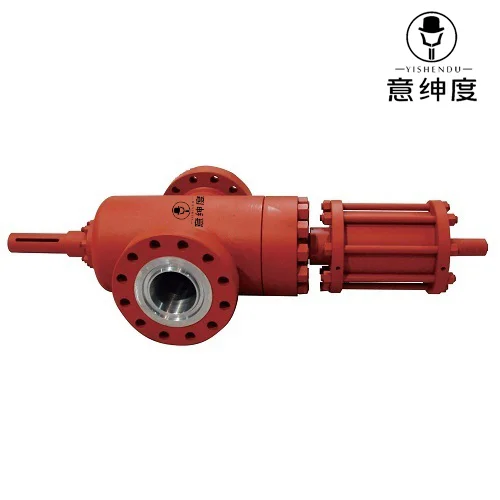

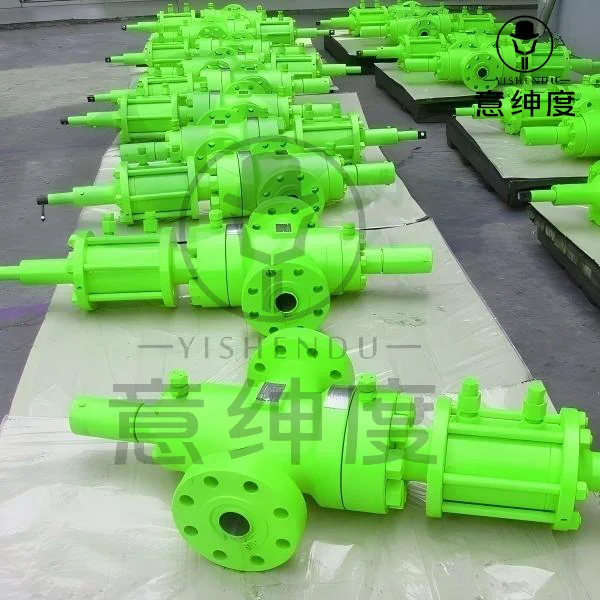

Our Q FLS Frac Gate Valve is an all forged valve with combined manual and hydraulic actuations. It's a through conduit valve with flanged or block type configurations. Its unique metal to metal sealing technology and dual ring pre energized seals makes this our standard valve for critical applications such as Choke and Kill Manifolds and Hydraulic Fracturing.
Qihang's hydraulic fracturing gate valves are strictly designed, produced, and tested in accordance with API 6A standards. Available in sizes from 3-1/16" to 7-1/16" with working pressure up to 15000PSI. The standard material for our API-6A hydraulic frac valves is integral forged AISI 4130 alloy steel, other material and specifications are also available upon request.
Detailed Specification:
Product Name: Hydraulic Fracturing Gate Valve, Hyd Frac Valve
Bore Size: 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16"
Rated Working Pressure: 5000PSI, 10000psi, 15000PSI
Material: AISI 4130 (Integral Forged) Alloy Steel, other material available upon request
End Connections: Flanged, Studded Outlets
Operation: Manual with Ball Screw Operator (BSO), Hydraulic Actuators
Standards: API Spec 6A, API Q1, NACE MR0175
Material Class: AA, BB, CC DD, EE, FF
Sour Gas Level: DD-NL, EE-0.5, EE-1.5, EE-NL, FF-0.5
Temp Class: L-U
PR Rating: PR1, PR2
PSL Rating: PSL1, PSL2, PSL3, PSL3G, PSL4
Optional Trim Enhancement: Inconel Inlay, Xylan Coating, QPQ etc
Traceability: Qihang's Frac Valves are supplied with full traceability documentation for each component.
Application: Wellhead Assembly, Frac Tree/Frac Stack, Production Tree, Choke & Kill Manifold, Oilfield Fracturing Operations etc
Origin: China
Features/Others:
Full bore forged steel type gate valve can be characterized as high pressure resistance, erosion resistance.
Body-bonnet and wedge-seat are full metal sealing structure, which is reliable.
Seat-seat rings, body-seat rings using high-performance seal ring assisted sealing
Gates and Seats are floating making simple replacement in the line with no selective fitting necessary.
Alloy steel valve body heat treated to NACE specifications.
Retainer Plates prevent media entering body cavity and washing out the grease.
Low torque design avoiding the need for excessive operation force
Easy operation with line pressure increasing the sealing force.
On-Time delivery
Competitively priced.
