Product Details

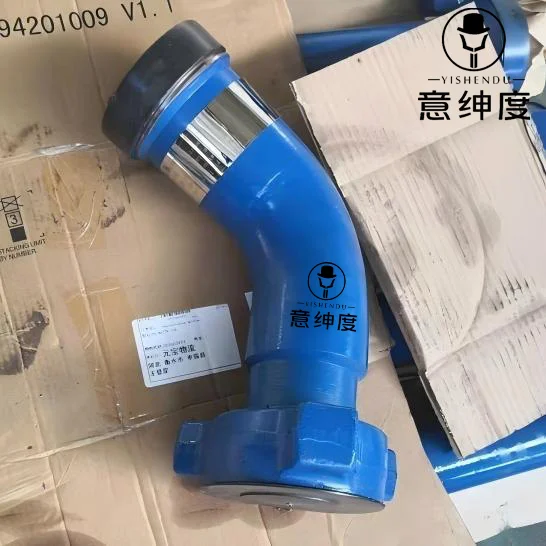

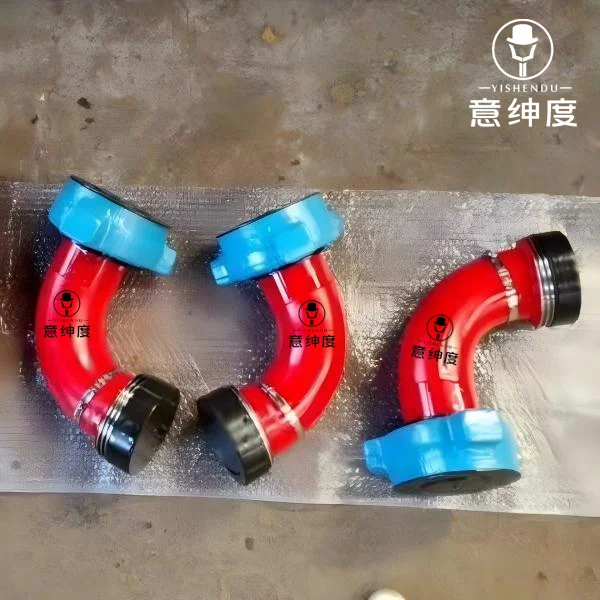

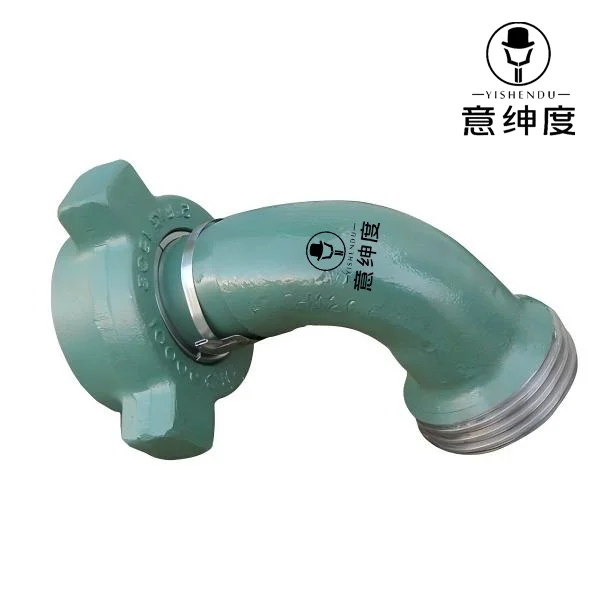

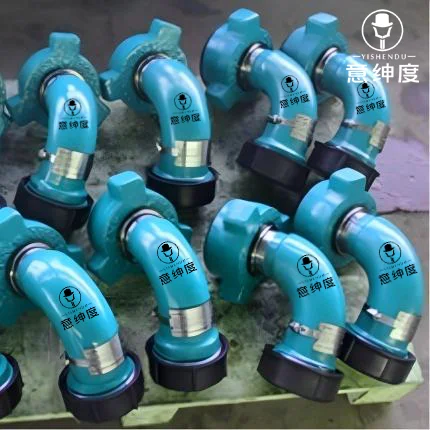

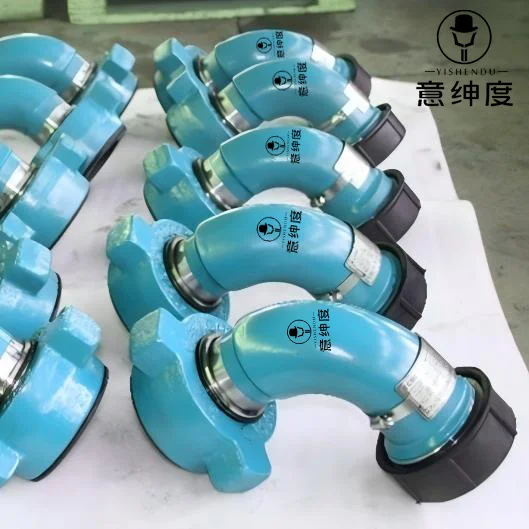

The Long Sweep Elbow - Long Radius Elbow on Chiksan® Swivel Joint are designed especially for high-pressure abrasive applications such as fracturing, choke-and-kill lines, cementing and circulating hoses, acidizing and test lines. These swivel joints easily handle severe fracturing fluids, radical temperature extremes, and high flow rates that are common on unconventional shale plays.
All of our Long Sweep Elbow - Long Radius Elbows are made of high strength alloy steel AISI 4130 and heat-treated to enhance load-bearing capacity and lengthen service life. Available in sizes 2", 3", 4"and pressure ratings at 6000 PSI, 10000PSI, 15000 PSI CWP.
Long radius eblow - long sweep elbow provided by Qihang are strictly design and manufactured as per API 16C and NACE MR0175 standards. These robust integral forged fittings are ideal for handling a complete range of standard and sour gas well servicing fluids at pressures up to 15,000 psi. Our Long Sweep Elbows are interchangeable with FMC Chiksan Weco Long Sweep Elbows and offer long and dependable service, even in the most extreme conditions!
Aside from the Long Sweep Elbows, we also produce and supply high pressure Integral Fittings such as Tees, Crosses, Crossovers, Laterals, Wyes, Long Radius Swivels, Ells, Adapters, Union Plugs, Hammer Union, Swivel Joint, Pup Joint, Chiksan Cementing and Circulating Hose Loops and many more.
Detailed Specifications:
Product Name: Long Sweep Elbow, Long Radius Elbow, Chiksan Weco Elbow, Ells, Integral Fittings
Size: 2", 3", 4"
Pressure Rating: 6000 PSI, 10000 PSI, 15000 PSI
Material: AISI 4130 Integral Forged
Working Temperature: -29°C~121°C.
End Connection: Fig 602, Fig 1502, Fig 2002, F X M (Female x Male), M X M (Male x Male) Integral Connection
WECO LONGSWEEP ELBOW Size 2 Inch Fig 602, 1502, 2002 ( Female x Male) , ( Male x Male) Integral Connection
WECO LONGSWEEP ELBOW Size 3 Inch Fig 602, 1502, 2002 ( Female x Male) , ( Male x Male) Integral Connection
WECO LONGSWEEP ELBOW Size 4 Inch Fig 602, 1002, ( Female x Male) , ( Male x Male) Integral Connection
Traceability: Qihang's Long Sweep Elbows/Long Radius Elbows are supplied with full traceability documentation for each component.
Interchangeability: Qihang's Long Sweep Elbows/Long Radius Elbows are interchangeable with FMC Chiksan Weco Longsweep Elbows and other major brands.
Service: Standard, H2S Service, Sour Service
Standards: API 16C and NACE MR0175
Application: High-pressure well service flowlines, frac manifold, well testing internal connections, cementing and circulating flowlines
Origin: China
Features:
High Quality Forged Construction
Wing Union End Connections
Can be Combined to Suit Virtually Any Installation
Comes with Full Material Traceability
Competitively Priced
