Product Details

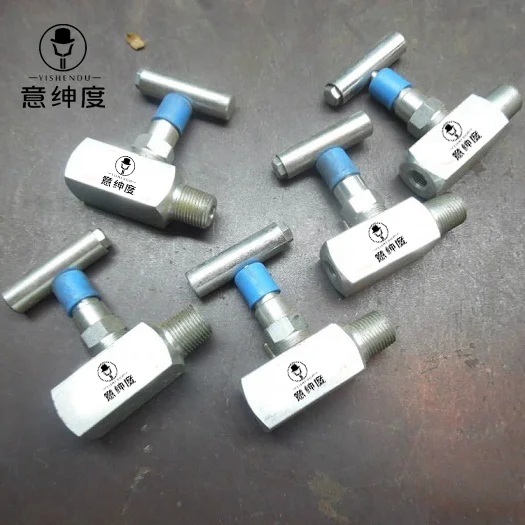

A Needle Valve is a type of valve having a small port and a threaded, needle-shaped plunger. It allows precise regulation of flow. Needle valves are usually used in flow-metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time, such as the idle fuel flow in a carburettor. Needle valves are also commonly used to provide shut off for the pressure gauges and other applications

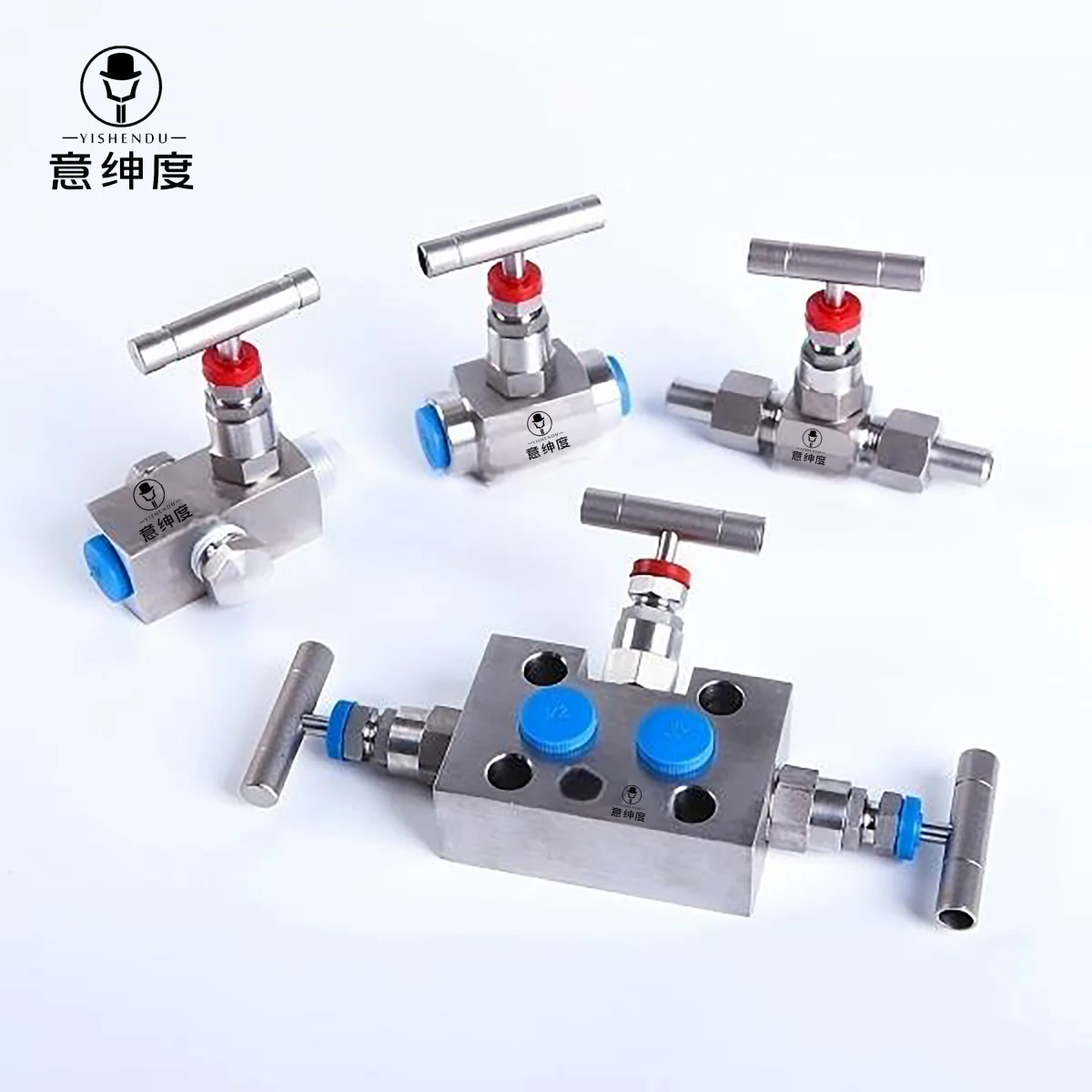

Qihang proudly supplies an array of types and sizes of needle valves for use in the Oil, Gas and Petrochemical industries. All of our needle valves are available to NACE MR-01-75 (Latest revision). We are able to provide our needle valve manifolds with plugs, but these are not supplied as standard and must be specified while ordering. Our needle valves range from 1/4″ NPT – 2″ NPT and pressure ratings are available from 1000PSI to 60000PSI. Popular configurations of the needle valves include: Straight Male x Female(M X F), Straight Female x Female(F X F), Angled Male x Female(M X F), and Angled Female x Female(F X F). The standard body material of our needle valves is stainless steel 316. Brass, carbon steel and other material are also available. End connections are available with NPT, SW, and BW.
Aside from needle valves, we also produce and supply other Wellhead Christmas Tree components, such as Ring Joint Gaskets, Pressure Gauges, Bull Plugs, Choke Beans. Contact us today for a full assessment of your needs.
Detailed Information:
Product Name: Needle Valve
Port Size/Size Range: 1/4" - 2"
Body Material: Stainless Steel 316, Brass, Carbon Steel etc
Packing Material: PTFE as standard, RPTFE, Graphite Optional

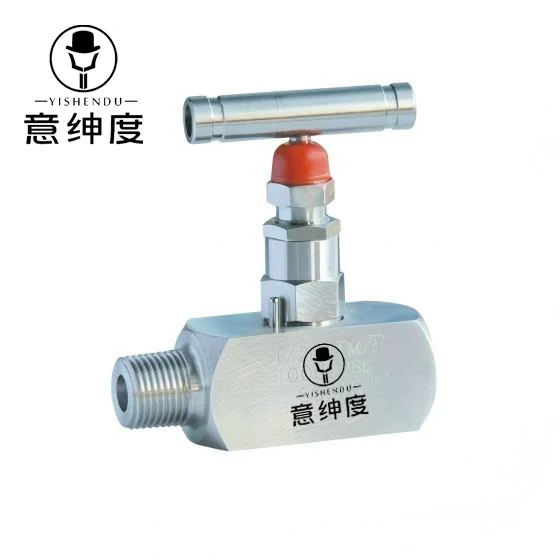

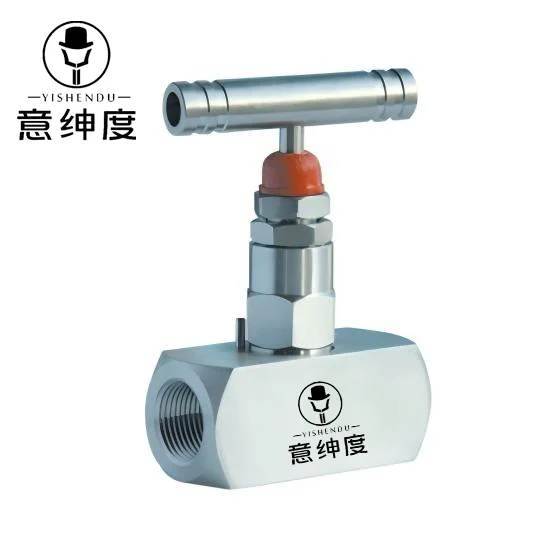

Configurations: Straight Male x Female(M X F), Straight Female x Female(F X F), Angled Male x Female(M X F), and Angled Female x Female(F X F)
Flow Pattern: Straight, Angle, 3-Way etc
End Connections: NPT, Socket Weld Ends(SW), Butt Weld Ends(BW), Screwed Ends
Working Temperature: -65 °F to 1200 °F ( -54 °C to 649 °C )
Medium: Oil, Gas, Water etc
Operation: Manual
Handle: T-Handle Bar, Knob
Applications: Oil, Gas, and Petrochemical industries
Origin: China
Features/Others:
Heavy Duty Body
NACE Compliant
Test Standard: API 598 or else
All needle valves are 100% tested before delivery
On-Time delivery
Competitively priced
