We are a professional manufacturer of various types of Split Plummer (Pillow) Block Housings. Our plummer blocks range covers SN200 series, SN300 series, SN500 (SSN500) series, SN600 (SSN600) series, SNU500 series, S3000K series, SD3000 series, SD3100 series, SD500 series, SD600 series, SN3000 (SSN3000) series, SN3100 (SSN3100) series, SNL200 series, SNL300 series, SNL500 series, SNL600 series, SNL3000 series, SNL3100 series, SNL3200 series, SNG series, SNH series, SNK series, SAF500 series, SAF600 series, to name just a few. The standard material is grey cast iron. Ductile iron, cast steel and stainless steel are also available. We also produce non-standard bearing housings as per customers' specific requirements. We proudly supply bearing housings to SIEMENS, WJB, NSK, KML, B2K etc.
SNL housings are made of grey cast iron. For applications where extra strength is needed, SNL housings are also available in spheroidal graphite cast iron. Housings made of spheroidal graphite cast iron are available from size 510-608 and are supplied with a solid base (no holes for attachment bolts) as standard. From size 511-608 the housings can be supplied with four oblong holes cast in the base. All housings made of spheroidal graphite cast iron can be supplied with two drilled holes for attachment bolts.
Product Information:

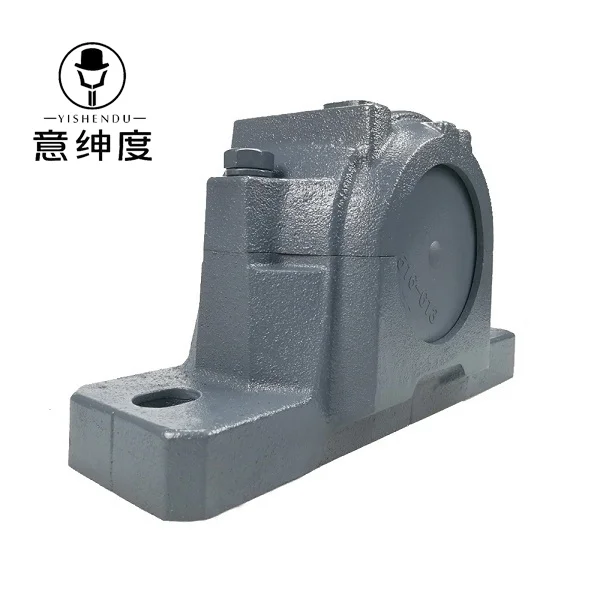

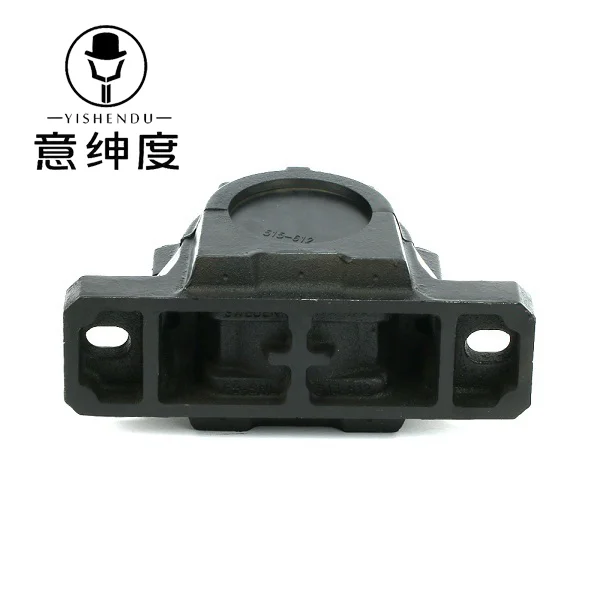

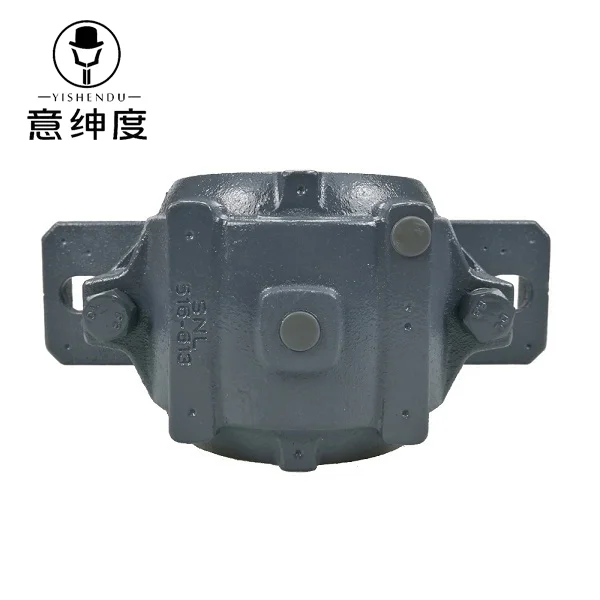

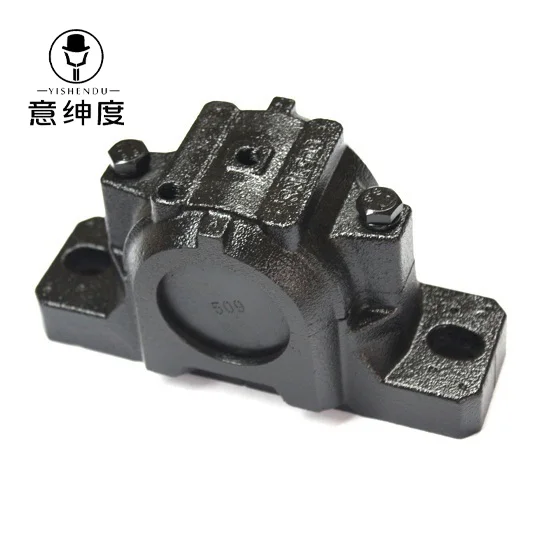

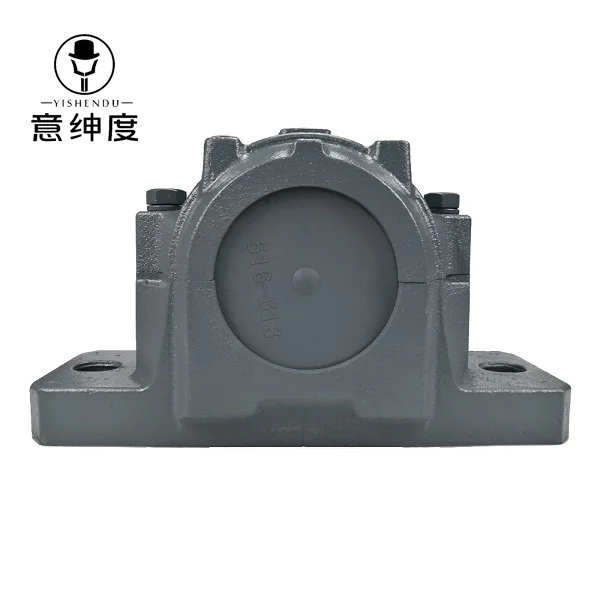

Product Name: Split Plummer Blocks, Split Type Bearing Housings
Series: SNL 5 Series
Model No.: SNL509, SNL515-612, SNL516-613, SNL517, SNL530, SNL532 etc.
Material: Grey Cast Iron, Ductile Iron, Cast Steel, or Stainless Steel
Vibration: Z1V1, Z2V2, Z3V3, Z4V4
Lubrication: Grease Oil
Painting Color: Black, Grey, Orange or customised
Interchangeability: SNL plummer block housings in the 2, 3, 5 and 6 series are dimensionally interchangeable with the SN, SNA and SNH series.
Applications: Agricultral Machinery, Mining Machinry, Papermaking Machinery, Sugar Mill Equipment, Sawmill Equipment, Heavy-Duty Machineries etc.
Features: Long life service, low noise, simple mounting. The SNL series housing base is reinforced with ribs and has extra material surrounding the holes for the attachment bolts.
