Product Details

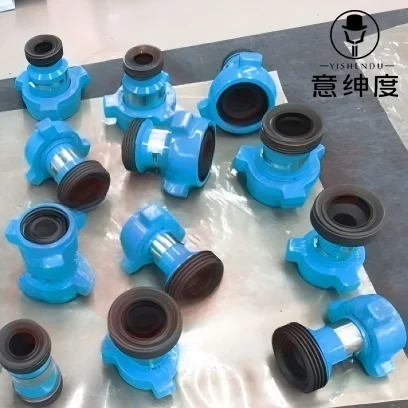

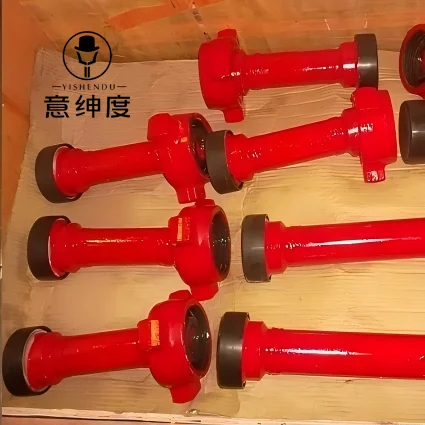

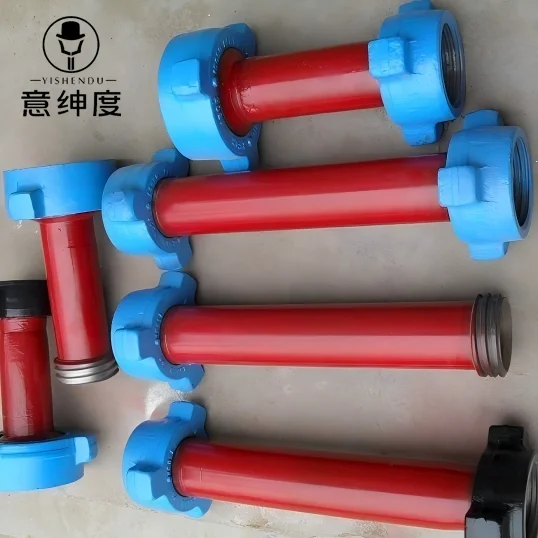

Product Name: Integral Union Crossover Adapters, X-Overs, Hammer Union Crossover Assembly, Changeovers
Sizes: 1", 2", 2"x3", 3", 4", 4"x2", 5"
Length: 1.5 Feet, or As per customers' requests/Nonstandard lengths.
Cold Working Pressure (CWP): 6000 PSI (6K), 10000 PSI (10K), 15000 PSI (15K), 20000 PSI (20K)
Material: AISI 4130 Integral Forged Alloy Steel or as per customers requirements
Configuration: Female x Female (F x F)
Other configurations/End Connections such as Figure 1502 Male x Female Hammer Union Connections, Figure 1002 Male x Female Hammer Union Connections, NPT, EUE (8 Round)are available upon request.
End Connections: Hammer Union Fig 602, Fig 1502, Fig 2002, Fig 1002 Integral Connection
Interchangeability: Qihang's Integral Forged Hammer Union X-Overs/Adapters are interchangeable with FMC Chiksan Union Crossovers and other major brands.
Service: Standard, H2S Service, Sour Service
Standards: API 16C, API6A, and NACE MR0175
Application: High-Pressure well service flowlines.
Packing: Plywood
Origin: China
