Product Details
API6A Demco Mud Gate Valve is mainly used for drilling mud circulating system in oilfields. It is used to control the flowing and stopping of mud. Our company's QH-DM series mud gate valves have been widely used in drilling standpipe manifolds, pump manifold block valves, high pressure mud pipelines, wellhead and petroleum/gas pipelines, and high pressure frac service. This type valve can be hard seal or soft seal with pressure up to 7500 PSI. The QH-DM Mud Gate Valve is available in sizes 2" to 4" with butt-welded end, Hammer Union End or flanged end connections.
Qihang is a professional wellhead assembly christmas tree, API6A valves, and oilfield manifolds manufacturer. All of our mud gate valves are fully designed, produced, and tested as per API 6A, API16C, and NACE-MR0175 standards. We can also design and produce mud gate valve according to customers' special requirements.

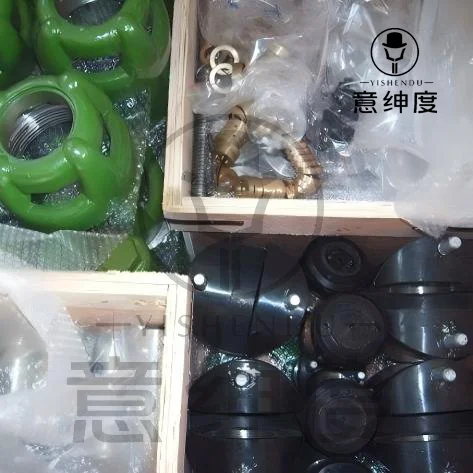

We produce and supply repair kits for Demco Ttype Mud Gate Valve. There are two kits available. The minor kit contains expendable items that require periodic service or replacement. The major repair kit contains items included in the minor repair kit plus items that are ordinarily replaced during a major over haul of the valve. Our kits contain parts of the highest quality and are 100% interchangeable with Demco parts.
Detailed Specifications:
Product Name: Repair Kits for Demco Type Mud Gate Valves
Nominal Bore: 2" to 4"

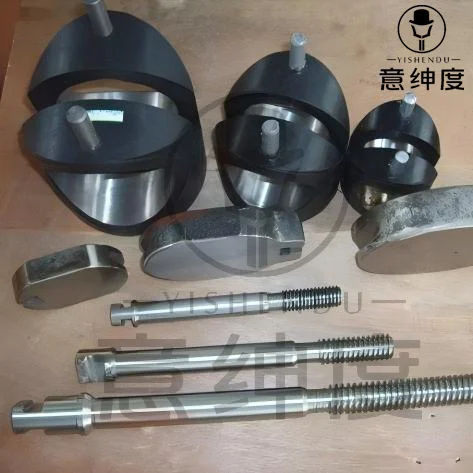

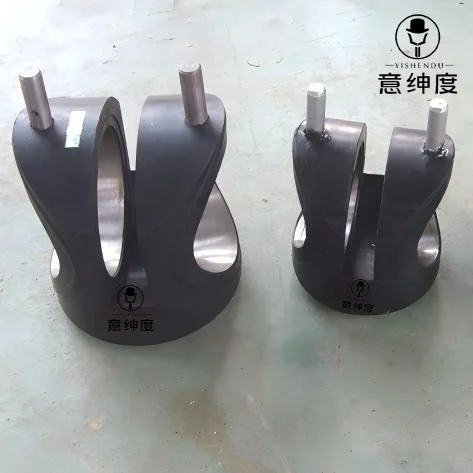

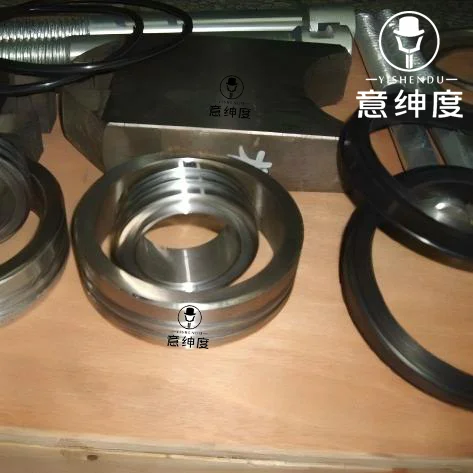

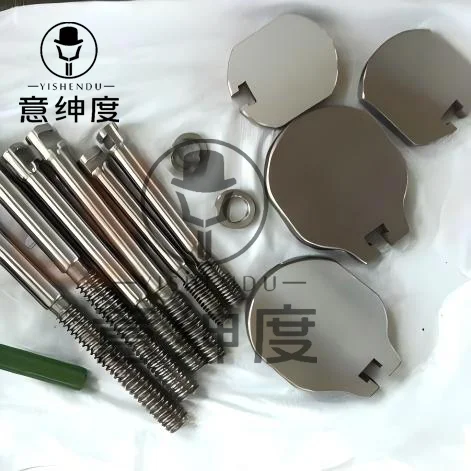

Major Repiar Kits include: Gate Clip, Stem Seal Assembly, Stem, Bonnet Seal, Gate, Seat, Housing Seal, Body Wear Ring, Wear Ring Seal, Stem Screw with Beairngs, Secondary Seal
Minor Repiar Kits include: Gate Clip, Bonnet Seal, Gate, Seat, Body Wear Ring, Wear Ring Seal
Standards: Fabricated and Tested in Accordance with API Spec 6A, NACE MR0175
Pressure Rating: 2000 PSI to 7500 PSI
Valve End Connection: Flange, Threaded, Butt-Welded, Hammer Union
Seal Type: Soft Seal, Hard Seal
Material Class: DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Traceability: Qihang's major repair kits and minor repair kits for Demco Mud Gate Valve are supplied with full traceability documentation for each component.
Application: Demco Type Mud Gate Valves
